產品名稱：N-1/2S- 瀏覽次數：
- 榮譽出品：射頻同軸連接器

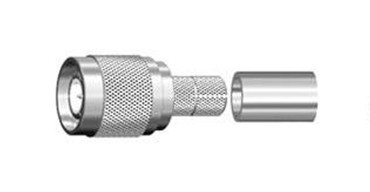

直式波紋管電纜插頭/Straight Corrugated Copper Tube Cable Plugs(male)
適用1/2波紋管電纜/For 1/2 corrugated copper tube cable
電纜外導體裝接/Cable entry clamp
中心導體抓握式/Centre contact snap-on
圖片僅供參考，以實物為準
|
產品名稱 Product type |
適用電纜 Apply cable |
備注 Notes |
|
N-J1/2”S |
RF1/2”S |
N型陽頭配接1/2超柔電纜 |
主要技術特性 TECHNICAL CHARACTERISTICS
|
溫度范圍 Temp.range |
-65～+165°C (PE Cable) |
|
振 動 Vibration |
MIL-STD-202‚ Method 213 |
|
特性阻抗 Impedance |
50Ω |
|
頻率范圍 Frequency Range |
DC～3GHz |
|
工作電壓 Working Voltage |
1000V max (有效值) |
|
耐 壓 Withstand Voltage |
2500V rms (海平面在效值) |
|
接觸電阻 Contact resistance |
內導體之間 Center Contact≤ 1 mΩ |
|
外導體之間 Outer Contact≤ 1mΩ | |
|
絕緣電阻 Insulation resistance |
≥ 5000 MΩ |
|
插入損耗 Insertion loss |
≤ 0.15dB (3GHz max) |
|
電壓駐波比 VSWR |
直式 Straight ≤ 1.15 |
|
彎式 Right angle ≤ 1.25 | |
|
防水等級 |
IP67 |
|
三階互調 PIM3 @2x20W |
≤-145dBc |
|
機械耐久性 |
500次 |
材料與涂覆 MATERIAL & PLATING
|
殼體 shell |
黃銅 brass |
鍍鎳或三元合金 nickel or CuSnZn3 plated |
|
插針 contact pin |
黃銅brass |
鍍硬金 gold plated |
|
插孔 socket |
鈹青銅或錫青銅 beryllium or tin brass |
鍍硬金 gold plated |
|
絕緣體 insulator |
聚四氟乙烯 PTFE |
|
|
o型密封件 o-ring sealing |
硅橡膠 silastic |
|
適用技術標準 APPLICABLE STANDARD
MIL-C-39012;
CECC 22210;
IEC 60169-16.
