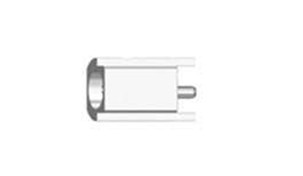

產品名稱：TAC-75KY-1- 瀏覽次數：
- 榮譽出品：射頻同軸連接器
螺母安裝終端連接器/Install the terminal connector nut
直式插座/Straight Socket
|
產品名稱/Product type |
適用電纜/Apply cable |
備注/Notes |
|
TAC-75KY-1 |
|
TAC型母頭 |
主要技術特性 TECHNICAL CHARACTERISTICS
|
溫度范圍 Temp.range |
-25～+70°C |
|
振 動 Vibration |
100m/s2 (10～500Hz) |
|
特性阻抗 Impedance |
75Ω |
|
頻率范圍 Frequency Range |
DC～1GHz |
|
工作電壓 Working Voltage |
335V max (有效值) |
|
耐 壓 Withstand Voltage |
700V rms (海平面有效值) |
|
接觸電阻 Contact resistance |
內導體之間 Center Contact≤ 10 mΩ |
|
外導體之間 Outer Contact ≤5 mΩ | |
|
絕緣電阻 Insulation resistance |
≥ 1000 MΩ |
|
耐久性Durability(mating) |
≥500次（cycles） |
材料與涂覆 MATERIAL & PLATING
|
殼體 shell |
黃銅 brass |
鍍亮鎳 nickel plated |
|
插針 contact pin |
黃銅 brass |
鍍硬金 gold plated |
|
插孔 socket |
鈹青銅或錫青銅beryllium or tin brass |
鍍硬金 gold plated |
|
彈性接觸件elastic contact |
鈹青銅或錫青銅beryllium or tin brass |
鍍硬金 gold plated |
|
內導體 inner conductor |
鈹青銅或錫青銅beryllium or tin brass |
鍍硬金 gold plated |
|
絕緣體 insulator |
聚四氟乙烯或聚乙烯PTFE or PE |
|
|
壓接套 crimping suite |
銅合金 copper alloy |
鍍鎳 nickel plated |
|
O型密封件o-ring sealing |
硅橡膠 6146 silastic |
|
適用技術標準 APPLICABLE STANDARD
IEC 60169-2
