產品名稱：SMZ-75KWWK- 瀏覽次數：
- 榮譽出品：射頻同軸連接器

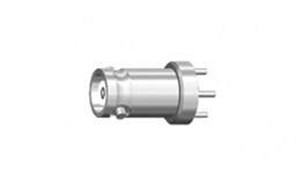

直式插座/Straight socket
|
產品名稱/Product type |
適用電纜/Apply cable |
備注 |
|
SMZ-75KWWK |
|
SMZ型母頭 |
主要技術特性 TECHNICAL CHARACTERISTICS
|
頻率范圍 Frequency Range |
0~1GHz |
|
特性阻抗 Impedance |
75Ω |
|
介質耐壓Dielectric Strength |
750V |
|
接觸電阻 Contact resistance |
內導體之間 Center Contact≤6.0mΩ |
|
外導體之間 Outer Contact ≤2.0mΩ | |
|
絕緣電阻 Insulation resistance |
≥ 1000 MΩ |
|
耐久性Durability(mating) |
≥500次 |
材料與涂覆 MATERIAL & PLATING
|
殼體 shell |
黃銅 brass鍍金Gilt |
|
插針 contact pin |
錫青銅Tin bronze鍍金Gilt |
|
插孔 socket |
鈹青銅Bronze鍍金Gilt |
|
絕緣體 insulator |
聚四氟乙烯 PTFE |
|
密封件o-ring sealing |
硅橡膠 6146 silastic |
|
線夾Clip |
黃銅 brass鍍鎳Nickel Plating |
執行標準Implementation of standards
BS 9210
