產品名稱：N-JB2-A- 瀏覽次數：
- 榮譽出品：射頻同軸連接器

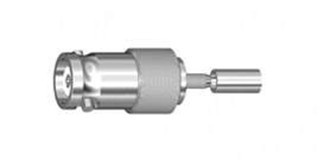

半剛電纜連接器／Semi-rigid cable connectors
直式插頭/Straight Plugs
|
產品名稱/Product type |
適用電纜/Apply cable |
備注/Notes |
|
N-JB2-A |
SFT-50-2,RG-405,086 |
N型陽頭配SFT-50-2,RG-405,086電纜 |
主要技術特性 TECHNICAL CHARACTERISTICS
|
溫度范圍 Temp.range |
-65～+165°C (PE Cable) |
|
振 動 Vibration |
MIL-STD-202, Method 213 |
|
特性阻抗 Impedance |
50Ω, |
|
頻率范圍 Frequency Range |
DC～11GHz |
|
工作電壓 Working Voltage |
1000V max (有效值) |
|
耐 壓 Withstand Voltage |
2500V rms (海平面 小值) |
|
接觸電阻 Contact resistance |
內導體之間 Center Contact≤ 1 mΩ |
|
外導體之間 Outer Contact≤ 1mΩ | |
|
絕緣電阻 Insulation resistance |
≥ 5000 MΩ |
|
電壓駐波比 VSWR |
直式 Straight ≤ 1.15 |
|
彎式 Right angle ≤ 1.25 | |
|
耐久性Durability(mating) |
≥500次 |
材料與涂覆 MATERIAL & PLATING
|
殼體 shell |
黃銅 brass |
鍍亮鎳 nickel plated |
|
插針 contact pin |
黃銅 brass |
鍍硬金 gold plated |
|
插孔 socket |
鈹青銅或錫青銅beryllium or tin brass |
鍍硬金 gold plated |
|
彈性接觸件elastic contact |
鈹青銅 beryllium |
鍍硬金 gold plated |
|
絕緣體 insulator |
聚四氟乙烯 PTFE |
|
|
o型密封件 o-ring sealing |
硅橡膠 6146silastic |
|
|
壓接套 crimping suite |
銅合金 copper alloy |
鍍鎳或鍍金 nickel or gold plated |
適用技術標準 APPLICABLE STANDARD
MIL-C-39012;
CECC 22210;
IEC 60169-16.
